The WAP Series Air Compressors are engineered for both home workshops and industrial applications, offering reliable, high-performance compressed air solutions. Available in multiple capacities from 15L to 500L, these compressors deliver consistent pressure, efficient operation, and long-lasting durability. Smaller models feature an oil-free system for maintenance-free convenience, while larger models include belt-driven, oil-lubricated pumps for heavy-duty industrial use. Equipped with aluminium wire or copper wire induction motors, they provide powerful airflow with stable operation. Noise levels range from 67dB to 92dB, allowing quieter operation in smaller units and robust performance in industrial models. Designed for versatility, the WAP Series compressors are ideal for tasks such as spray painting, tire inflation, industrial machinery operation, and general workshop air supply. Each unit is packaged securely—either in carton boxes or wooden cases—to ensure safe delivery.

Key Features

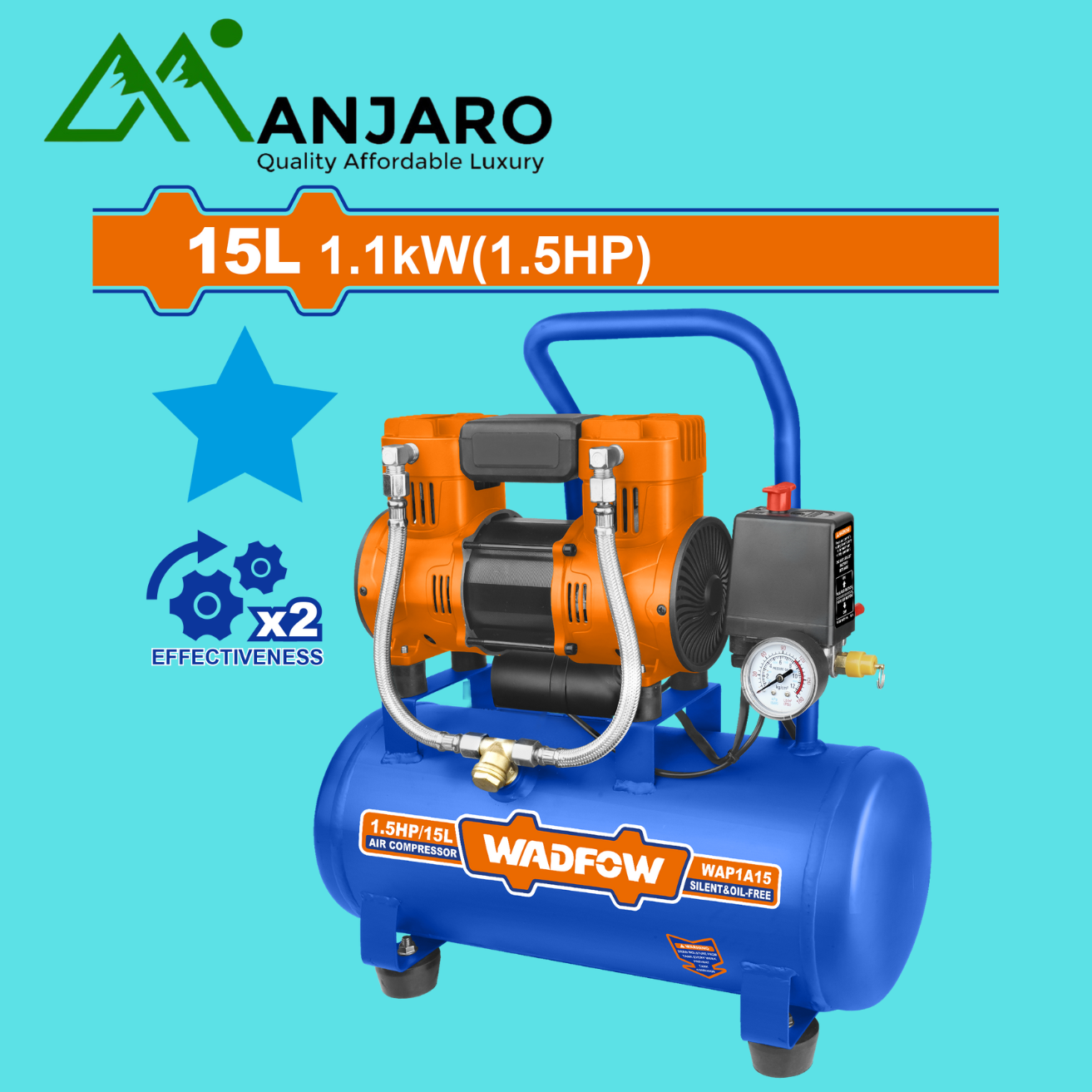

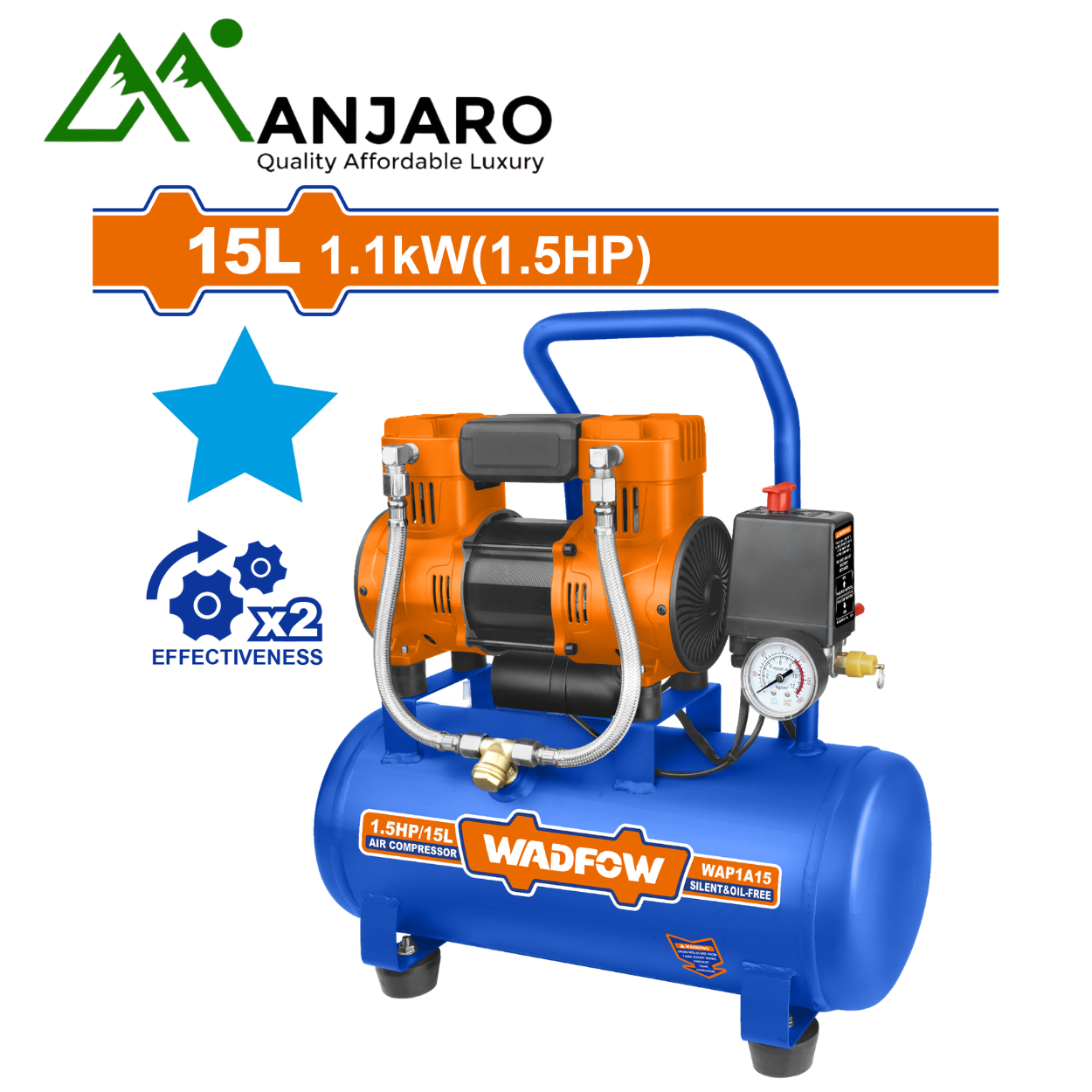

WAP1A15

• Voltage: 220-240V~50Hz

• Input Power: 1100W (1.5HP)

• Tank Capacity: 15L (4Gal)

• System: Oil-free

• Noise Level: 67dB

• Motor: Aluminium wire

• No-Load Speed: 2850rpm

• Max Operation Pressure: 8bar

• Packaging: Carton box

WAP1A24

• Voltage: 220-240V~50Hz

• Input Power: 1100W (1.5HP)

• Tank Capacity: 24L (6.3Gal)

• System: Oil-free

• Noise Level: 67dB

• Motor: Aluminium wire

• No-Load Speed: 2850rpm

• Max Operation Pressure: 8bar

• Packaging: Carton box

WAP4R25

• Voltage: 220-240V~50Hz

• Input Power: 2.2kW (3HP)

• Tank Capacity: 50L (13.2Gal)

• System: Belt-driven, oil-lubricated pump

• Noise Level: 92dB

• Motor: Aluminium wire

• No-Load Speed: 950rpm

• Max Operation Pressure: 8bar

• Packaging: Wooden case

WAP4R21

• Voltage: 220-240V~50Hz

• Input Power: 2.2kW (3HP)

• Tank Capacity: 100L (26.4Gal)

• System: Belt-driven, oil-lubricated pump

• Noise Level: 92dB

• Motor: Aluminium wire

• No-Load Speed: 950rpm

• Max Operation Pressure: 8bar

• Packaging: Wooden case

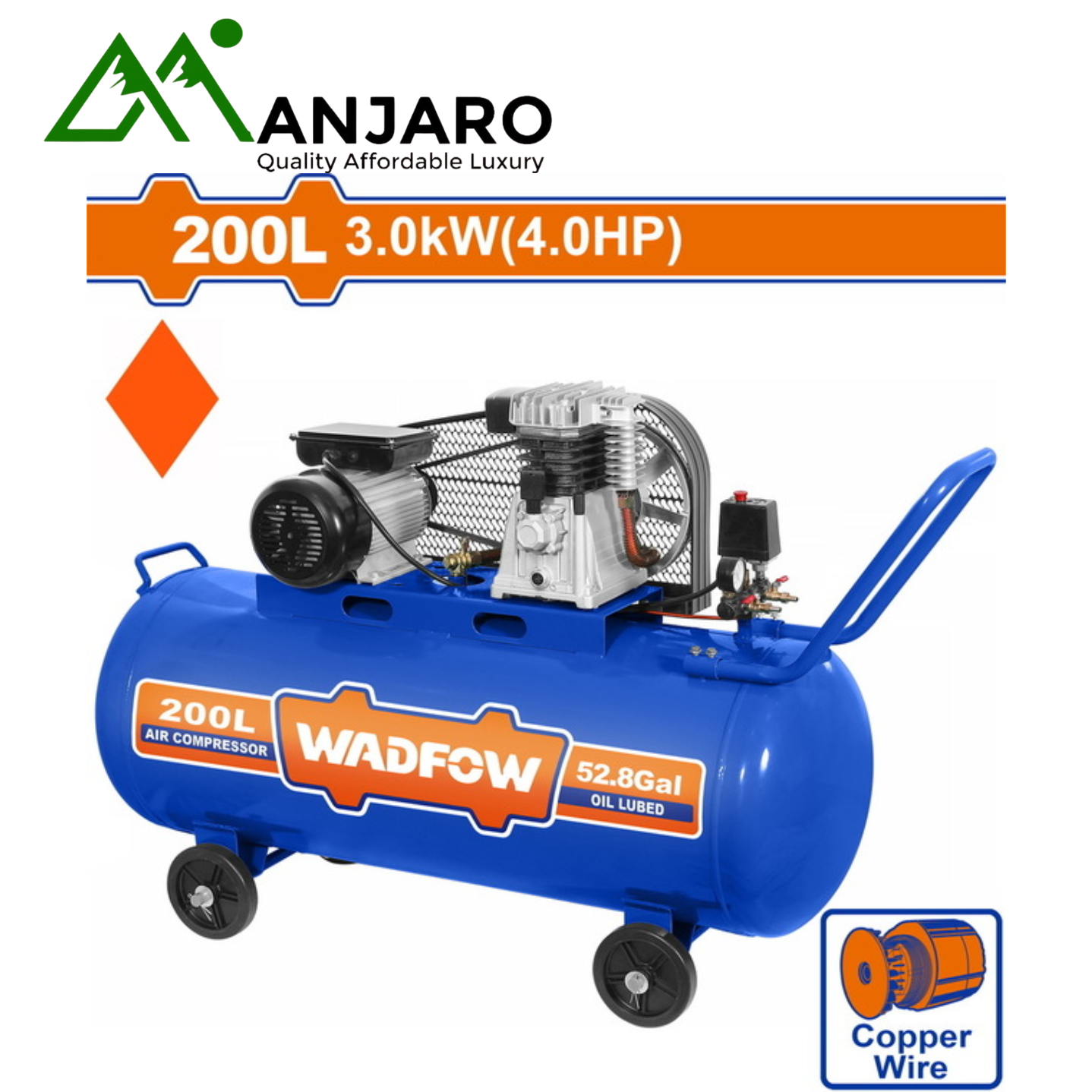

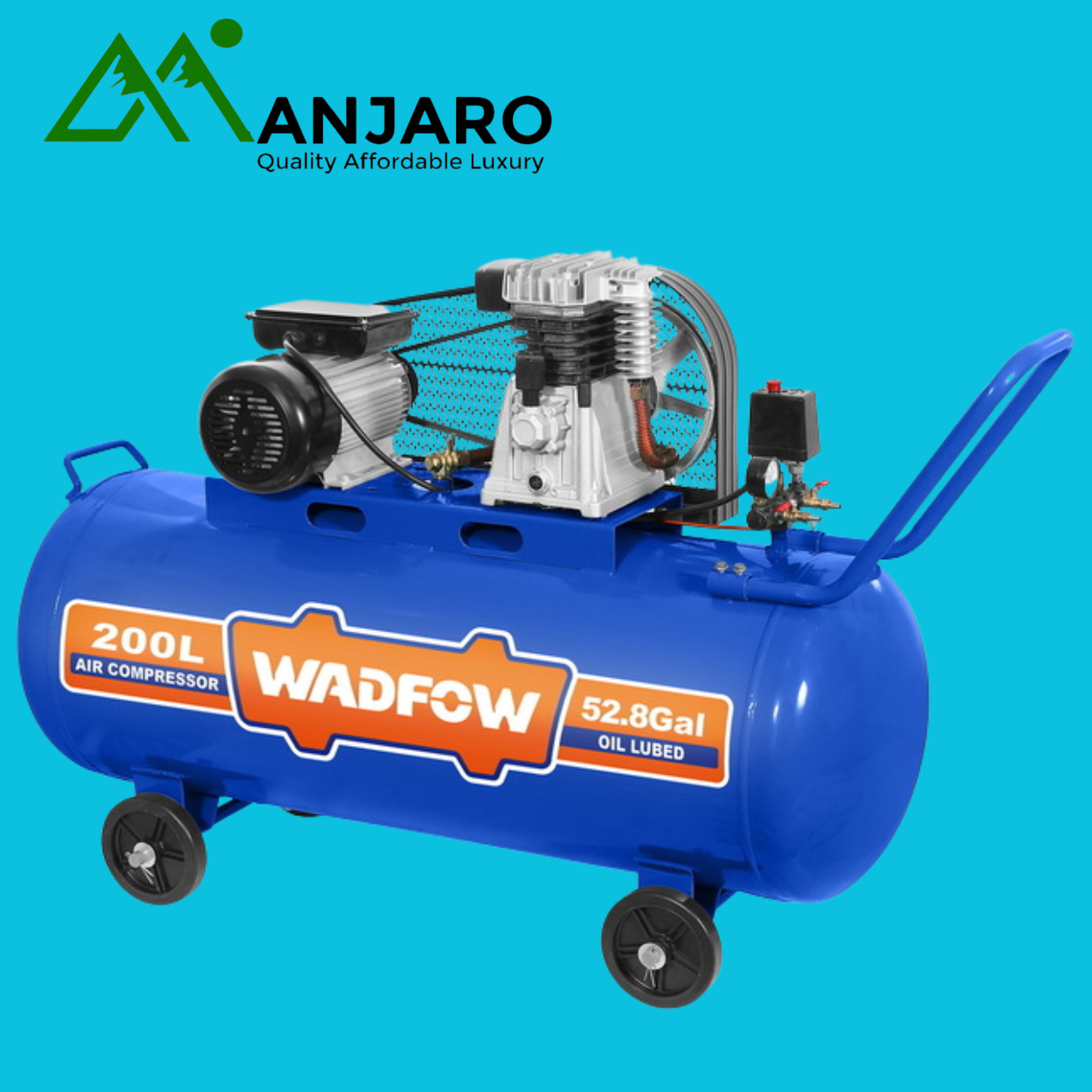

WAP4R22

• Voltage: 220-240V~50Hz, Single Phase

• Input Power: 3.0kW (4HP)

• Tank Capacity: 200L

• System: Belt-driven, oil-lubricated pump

• Noise Level: 83dB

• Motor: Copper wire induction

• Max Operation Pressure: 8bar

• Packaging: Wooden case

WAP4R35

• Voltage: 380V~50Hz, Three Phase

• Input Power: 5.5kW (7.5HP)

• Tank Capacity: 500L

• System: Belt-driven, oil-lubricated pump

• Noise Level: 83dB

• Motor: Copper wire induction

• Max Operation Pressure: 8bar

• Packaging: Wooden case
