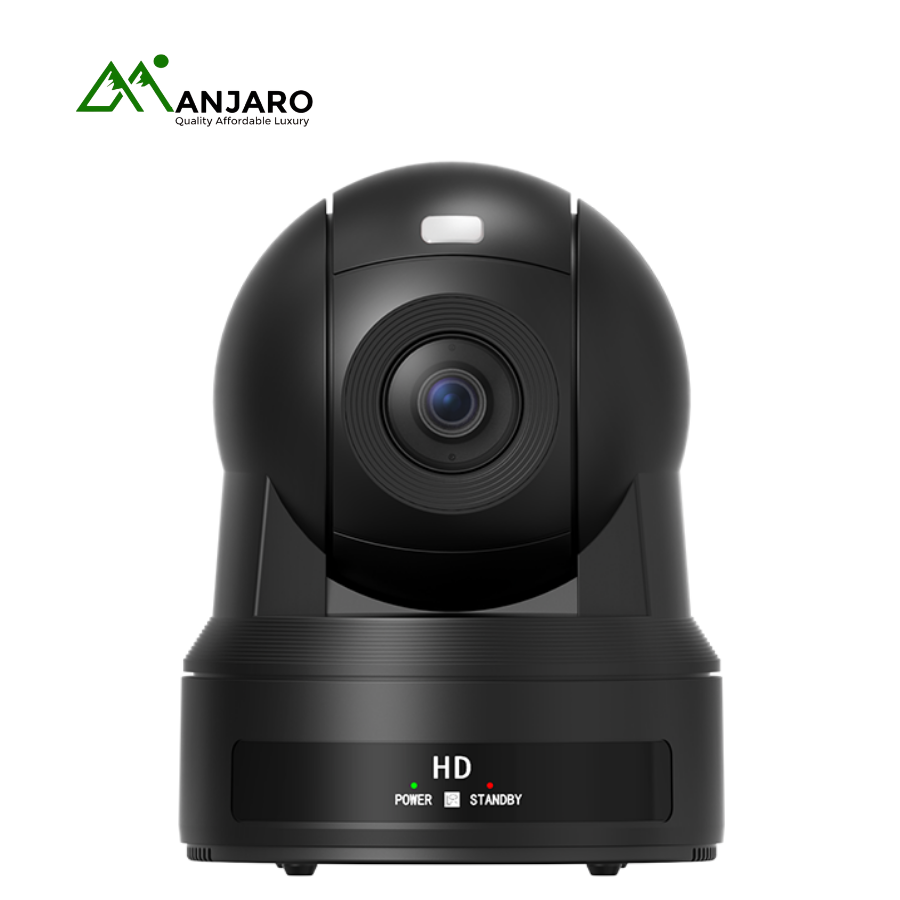

KT-HD86AN Full HD PTZ Camera – 12X / 20X / 30X Optical Zoom, HDMI + SDI + LAN + USB3.0, SONY CMOS Sensor

The KT-HD86AN PTZ Camera delivers professional-grade Full HD video performance and flexible connectivity options for broadcast, conferencing, live streaming, and video production.

Powered by a SONY 1/2.8" progressive CMOS sensor, this PTZ camera ensures outstanding image clarity, color accuracy, and low-light performance. With multiple zoom configurations (12X, 20X, or 30X), it adapts seamlessly to a range of shooting environments — from small meeting rooms to large auditoriums.

The KT-HD86AN supports HDMI, SDI, LAN, and USB3.0 outputs, enabling simultaneous multi-platform streaming and recording. Advanced IP streaming protocols (RTMP, RTSP, ONVIF, NDI|HX optional) provide smooth integration with modern streaming workflows.

Its POE power capability and tally light indicator add convenience for professional studios and hybrid event setups.

Key Features

• Sensor: SONY 1/2.8" Progressive CMOS

• Resolution:

  • 1080p60/50, 1080p59.94/29.97, 1080p30/25

  • 1080i60/50, 1080i59.94

• Zoom Options:

  • 30X Optical Zoom (58.1° FOV) + 16X Digital Zoom

  • 20X Optical Zoom (58.7° FOV) + 16X Digital Zoom

  • 12X Optical Zoom (72.5° FOV) + 16X Digital Zoom

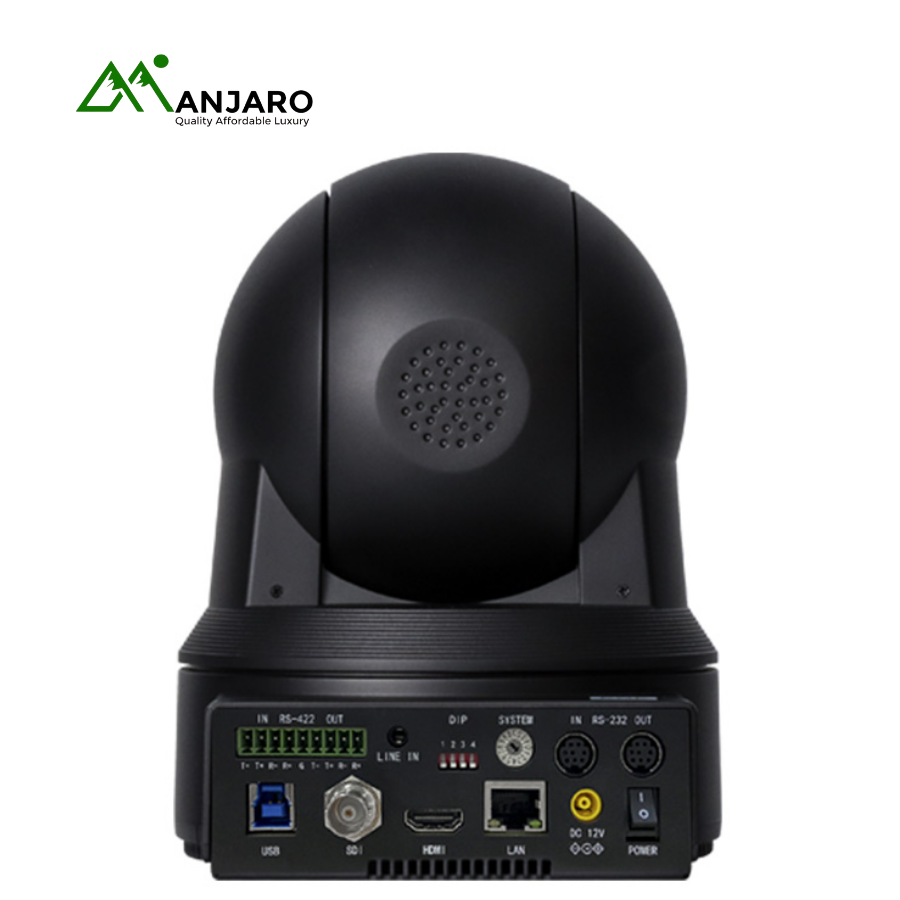

• Video Outputs: HDMI + SDI + LAN + USB3.0

• Camera Control: RS232 (IN) / RS485

• Streaming Protocols: RTMP, RTSP, ONVIF, NDI|HX (Optional)

• Power: POE Supported

• Additional Features:

  • Built-in Tally Light for live production

  • Smooth, quiet PTZ movement

  • Excellent low-light performance

Why Choose the KT-HD86AN

• Professional Full HD image quality powered by SONY CMOS

• Available in 12X / 20X / 30X optical zoom models

• Multi-interface output for broadcast & streaming setups

• NDI|HX optional for seamless IP video integration

• POE power + tally light for studio convenience

• Ideal for churches, conferences, classrooms, and live events
