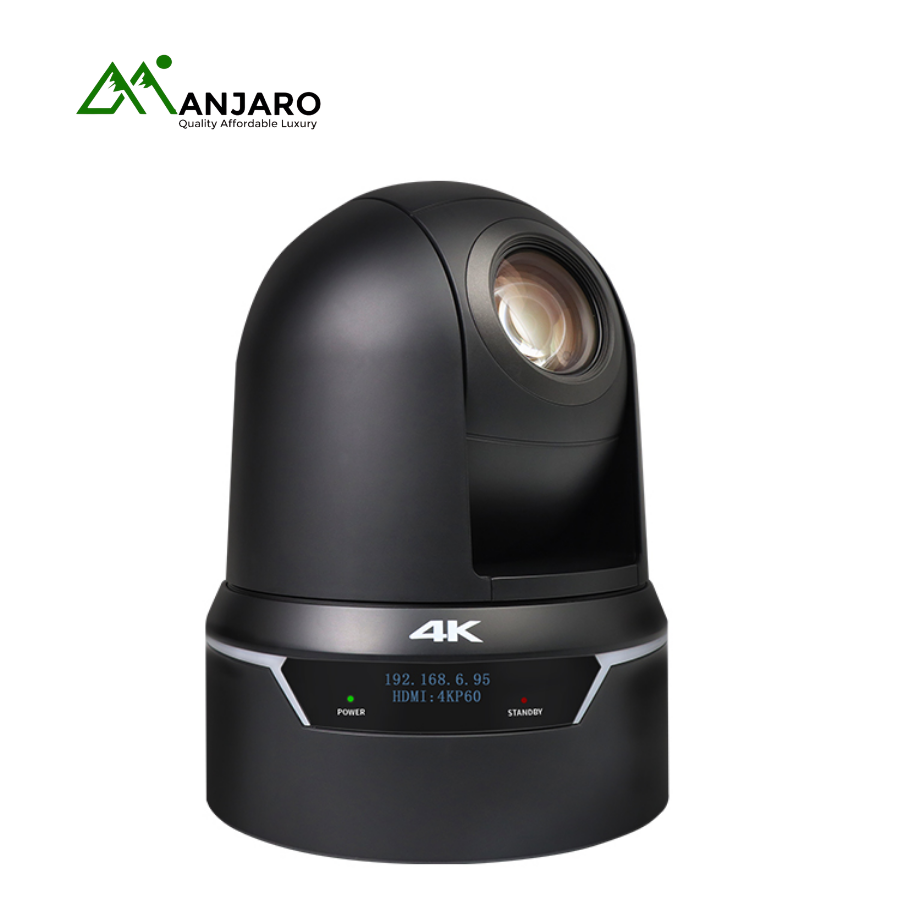

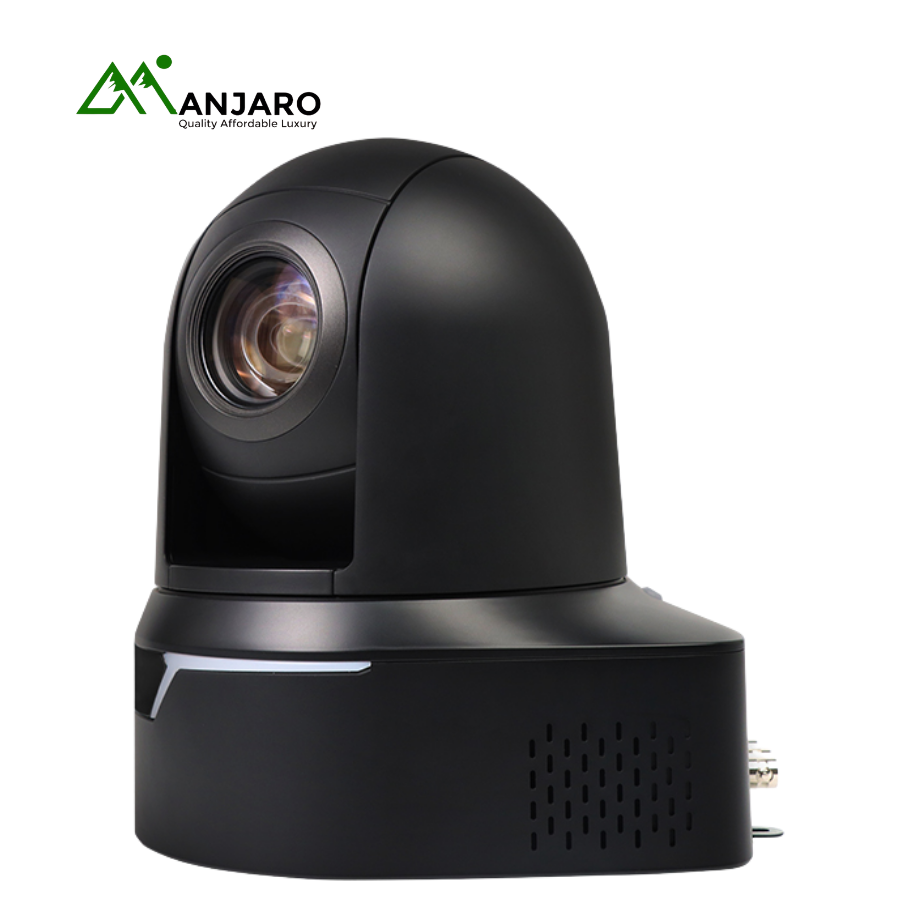

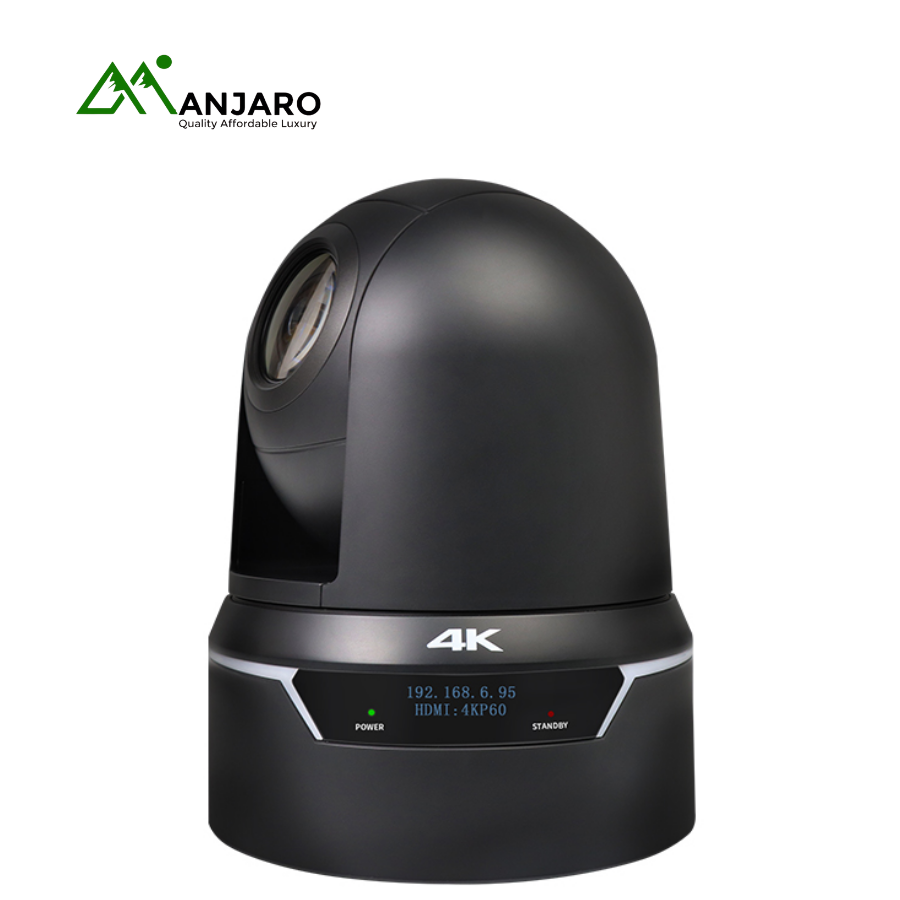

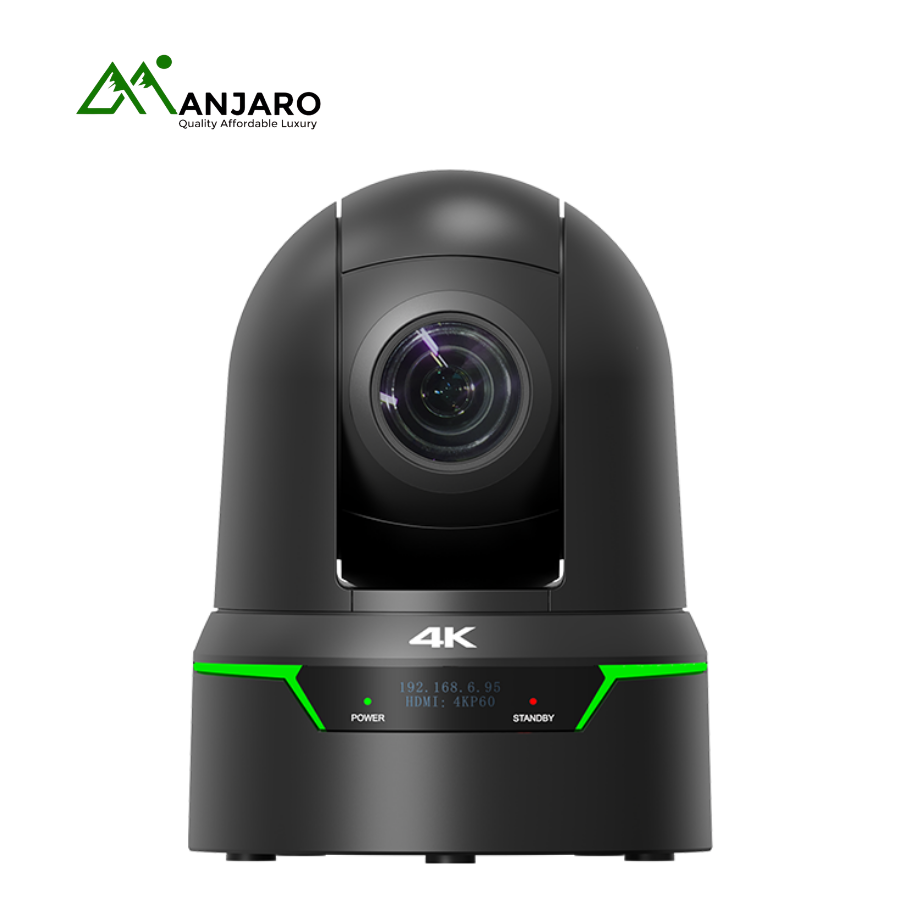

KT-UH71KTN 4K PTZ Camera – 25X Optical Zoom, HDMI (4K60), Dual 12G-SDI + 3G-SDI, LAN & USB 3.0

The KT-UH71KTN 4K PTZ Camera is a professional broadcast-grade camera engineered for exceptional image quality, versatility, and precision control in any environment. Built with a Sony 1/1.8" 8.5MP CMOS sensor, it delivers stunning Ultra HD 4K video at 60fps with natural color reproduction and clarity, even in low-light conditions.

With its 25X optical zoom and 59.2° wide field of view, the KT-UH71KTN allows smooth and detailed close-ups, ideal for live productions, streaming, worship services, and studio broadcasting.

The camera supports HDMI (4K60), Dual 12G-SDI, 3G-SDI, LAN, and USB 3.0 outputs — ensuring seamless connectivity across any professional AV setup. It also supports RS232/RS422/RS485 control, Power over Ethernet (PoE), and IP streaming via RTMP, RTSP, ONVIF, and NDI|HX (optional), offering complete flexibility for both wired and network-based workflows.

A built-in Tally Light provides clear on-air status, while its reliable, low-noise motor delivers smooth PTZ operation suitable for multi-camera live productions.

Whether for church live streaming, studio broadcasting, education, or corporate video, the KT-UH71KTN delivers 4K cinematic precision and professional-grade performance in a compact design.

Key Features

• Image Sensor: Sony 1/1.8" CMOS, 8.5 Megapixels

• Resolutions:

  • HDMI: 4K60/59.94/50/30/29.97/25, 1080p60/50/30/25, 720p60/50

  • 12G-SDI: 4K60/59.94/50/30/29.97/25, 1080p60/50/30/25, 720p60/50

  • 3G-SDI: 1080p60/59.94/50/30/29.97/25, 1080i60/59.94/50, 720p60/50

• Optical Zoom: 25X optical zoom (59.2° wide field of view)

• Interfaces: HDMI (4K60), Dual 12G-SDI, 3G-SDI, LAN, USB 3.0

• Control Ports: RS232 (IN/OUT), RS422, RS485

• Power: Supports PoE (Power over Ethernet)

• Streaming Protocols: RTMP, RTSP, ONVIF, NDI|HX (optional)

• Additional Features:

  • Built-in Tally Light for live production

  • Exceptional low-light performance

  • Robust and quiet motorized PTZ control

Why Choose the KT-UH71KTN

• True 4K60 performance with ultra-smooth PTZ operation

• Multiple professional outputs including Dual 12G-SDI & HDMI 4K60

• Flexible control & streaming options with IP, NDI|HX & PoE

• Sony sensor ensures superior color accuracy and clarity

• Ideal for studios, churches, schools, and live event broadcasting
