KT-UH45GH 4K30 PTZ Camera – 20X Optical Zoom, HDMI + IP + USB3.0, SONY CMOS Sensor, POE

The KT-UH45GH 4K PTZ Camera combines 4K ultra-high-definition clarity, precision zoom, and seamless connectivity for professional-grade video production, live streaming, and conferencing.

Powered by a SONY 1/2.8" progressive CMOS sensor with 8.5 megapixels, this camera captures vibrant detail and lifelike color in every frame. The 20X optical zoom lens (58.7° FOV) delivers exceptional versatility, allowing users to capture wide shots or focus on close-up subjects without image loss.

The KT-UH45GH supports HDMI, IP, and USB3.0 outputs for flexible integration with a wide range of AV and broadcast systems. It offers resolutions up to 4K30, along with smooth Full HD (1080p) and HD (720p) video for multi-format compatibility.

With RS232/RS485 camera control, RTMP/RTSP/ONVIF IP streaming, and POE power support, the KT-UH45GH ensures easy setup and stable performance for both studio and field environments.

(Note: Only two synchronous outputs support optical zoom; digital zoom not supported.)

Key Features

• Sensor: SONY 1/2.8" Progressive CMOS, 8.5 Megapixels

• Resolution:

  • 4K: 3840×2160p30/25

  • Full HD: 1920×1080p60/59.94/50/30/29.97/25

  • HD: 1280×720p60/50

  • Does not support 1080i

• Optical Zoom: 20X (58.7° Field of View)

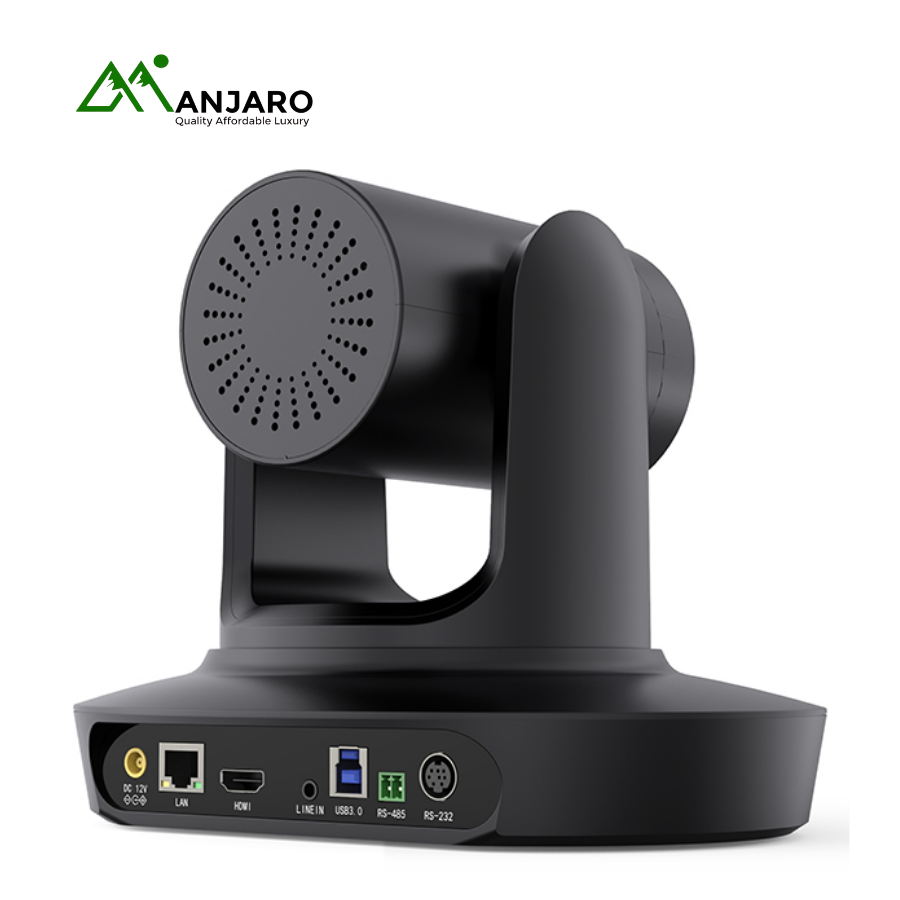

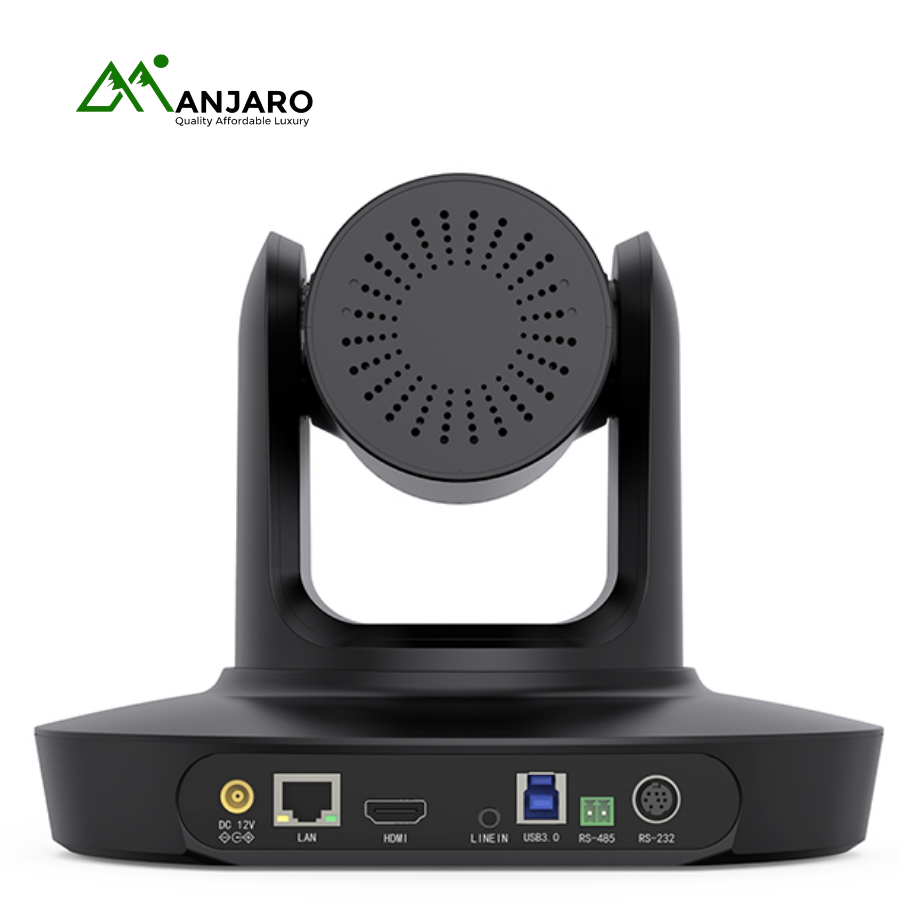

• Video Outputs: HDMI + IP + USB3.0

• Camera Control: RS232 (IN) / RS485

• IP Streaming Protocols: RTMP, RTSP, ONVIF

• Power: Supports POE (Power over Ethernet)

• Compact, quiet PTZ operation for smooth, professional movement

• Ideal for: Live streaming, conferencing, classrooms, studios, and events

Why Choose the KT-UH45GH

• Delivers crystal-clear 4K30 video for professional streaming and recording

• Equipped with a high-performance SONY CMOS sensor

• 20X optical zoom for detailed close-ups without loss of quality

• Multiple connectivity options for maximum flexibility

• POE-ready, simplifying installation and reducing cable clutter
